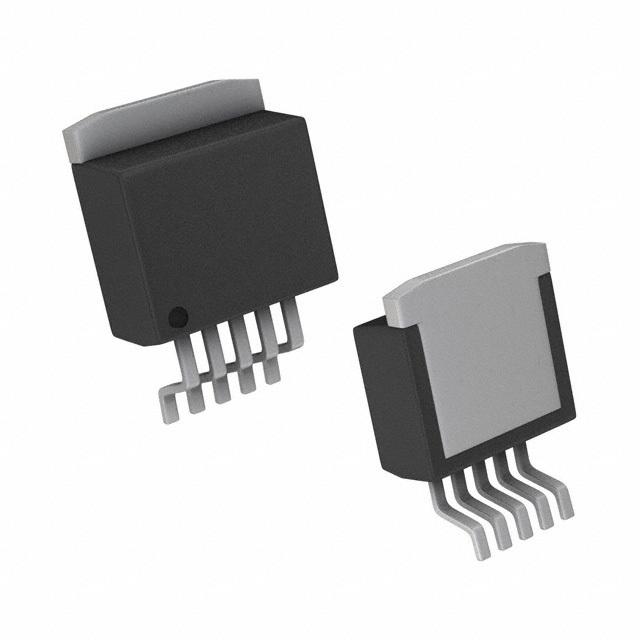

Image is for your reference only,please check specifications for details
- TPS75901KTTR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC31874160
-
Category:Voltage Regulator
-
Package:TO-263-6
-
Datasheet:Datasheet 3D Model
-
Description:Single Channel LDO Single Output LDO, 7.5A, Adj.(1.22 to 5V), Fast Transient Response, Low Quiescent Current LDO Regulator Pos 1.22V to 5V 7.5A 6Pin(5+Tab) TO-263 T/R
-
Stock Locations:
-
Availability:851 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.93
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Stable voltages are always needed for sensitive systems implement this LDO TPS75901KTTR linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.4@7.5A V. This voltage regulation device"s single output can produce a current up to 7.5 A. This will operate at a minimum voltage of 2.8 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.22 to 5 V, this is power management at its best. Users like the load regulation of 0.35%/V(Typ) and line regulation of 0.04%/V(Typ). Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
TPS75901KTTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | TO-263-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.22V ~ 5V |
| Output Current | 7.5 A |
| Supply Current | 200 µA |
| Quiescent Current | 120 µA |
| Output Capacitor Type | Tantalum |
| voltage rating | 0.4V @7.5A |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.8 V |
| Output Voltage (Max) | 5 V |
| Output Voltage (Min) | 1.22 V |
| Output Current (Max) | 7.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | 3 % |
| Input Voltage | 2.8V ~ 5.5V |
| Show | |
| Size-Height | 4.83 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
