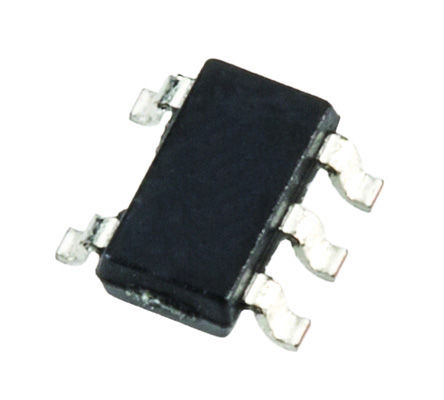

- TPS780330220DDCR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4263531
-
Category:Voltage Regulator
-
Package:TSOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TPS780330220DDCR LDO Voltage Regulator, Adjustable, 2.2V to 5.5V in, 200mV drop, 2.2V to 3.3V/150mA out, TSOT-23-5
-
Stock Locations:
-
Availability:692 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.46
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS780 family of low-dropout (LDO) regulators offer the benefits of ultralow power (IQ = 500nA), miniaturized packaging (2×2 SON-6), and selectable dual-level output voltage levels. An adjustable version is also available, but does not have the capability to shift voltage levels.
- The VSET pin allows the end user to switch between two voltage levels on-the-fly through a
- microprocessor-compatible input. This LDO is designed specifically for battery-powered applications where dual-level voltages are needed. With ultralow IQ (500nA), microprocessors, memory cards, and smoke detectors are ideal applications for this device.
- FEATURES
- • Low IQ : 500nA
- • 150mA, Low-Dropout Regulator with Pin-Selectable Dual Voltage Level Output
- • Low Dropout: 200mV at 150mA
- • 3% Accuracy Over Load/Line/Temperature
- • Available in Dual-Level, Fixed Output Voltages from 1.5V to 4.2V Using Innovative Factory
- EPROM Programming
- • Available in an Adjustable Version from 1.22V to 5.25V or a Dual-Level Output Version
- • VSET Pin Toggles Output Voltage Between Two Factory-Programmed Voltage Levels
- • Stable with a 1.0µF Ceramic Capacitor
- • Thermal Shutdown and Overcurrent Protection
- • CMOS Logic Level-Compatible Enable Pin
- • Available in DDC (TSOT23-5) or DRV (2mm × 2mm SON-6) Package Options
- APPLICATIONS
- • TI MSP430 Attach Applications
- • Power Rails with Programming Mode
- • Dual Voltage Levels for Power-Saving Mode
- • Wireless Handsets, Smartphones, PDAs, MP3 Players, and Other Battery-Operated Handheld
- Products
TPS780330220DDCR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TSOT-23-5 |
| Power Rating | 0.5 W |
| Number of Outputs | 1 Output |
| Output Voltage | ≥2.20 V |
| Output Current | 150 mA |
| Number of Positions | 5 Position |
| Power Dissipation | 0.5 W |
| Quiescent Current | 0.0005 mA |
| Output Capacitor Type | Ceramic |
| voltage rating | 200 mV |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.2 V |
| Output Voltage (Max) | 3.3 V |
| Output Voltage (Min) | 2.2 V |
| Output Current (Max) | 0.15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 500 mW |
| Accuracy | ±2 % |
| Input Voltage | 2.2V ~ 5.5V |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.87 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
