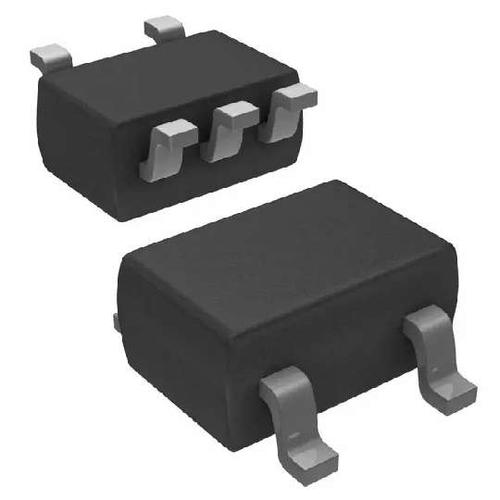

Image is for your reference only,please check specifications for details

TPS79733DCKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC31402939
Category:
Voltage Regulator
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 50mA, Fixed (3.3V), Low Quiescent Current, Power Good (PG) Output LDO Regulator Pos 3.3V 0.05A 5Pin SC-70 T/R
Stock Locations:
Availability:
3,301 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.53

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TPS797xx family of low-dropout (LDO) voltage regulators offers the benefits of low-dropout voltage and ultralow-power operation. The device is stable with any capacitor (>0.47µF). Therefore, implementations of this device require very little board space due to the miniaturized packaging and potentially small output capacitor. In addition, the family includes an integrated open drain active-high power good (PG) output. Intended for use in microcontroller based, battery-powered applications, the TPS797xx family’s low dropout and ultralow-powered operation results in a significant increase in system battery operating life. The small packaging minimizes consumption of board space.
FEATURES
10-mA Low-Dropout Regulator
Ultralow 1.2-µA Quiescent Current at 10 mA
5-Pin SC70/SOT-323 (DCK) Package
Integrated Power Good Output
Stable With Any Capacitor (>0.47 µF)
Dropout Voltage Typically 105 mV at 10 mA(TPS79733)
Over Current Limitation
–40°C to 85°C Operating Junction Temperature Range
APPLICATIONS
Battery Powered Microcontrollers and Microprocessors

Show

TPS79733DCKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Number of Outputs	1 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	3.3 V
Output Current	50 mA
Supply Current	2 µA
Number of Positions	5 Position
Power Dissipation	0.318 W
Quiescent Current	1.00 µA
Output Capacitor Type	Ceramic
voltage rating	0.105V @10mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.05 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	318 mW
Accuracy	4 %
Input Voltage	≤5.5 V
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
