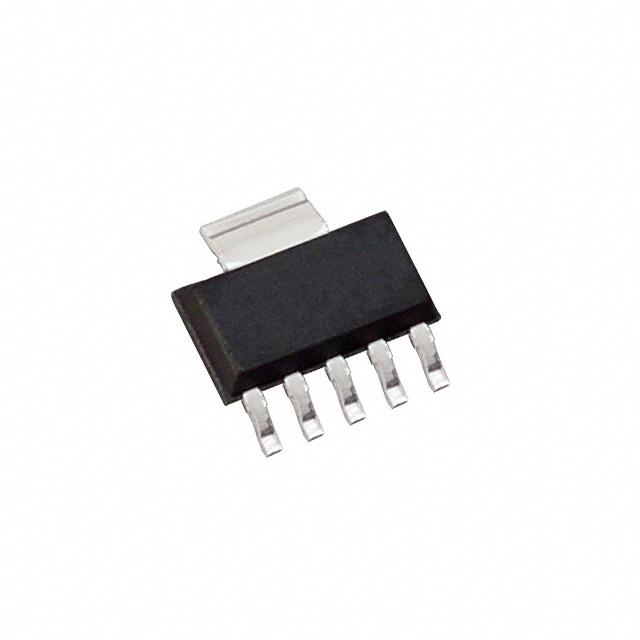

Image is for your reference only,please check specifications for details
- TPS7A4533DCQR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11738180
-
Category:Voltage Regulator
-
Package:SOT-223-6
-
Datasheet:Datasheet 3D Model
-
Description:Single Channel LDO Low-Noise Fast-Transient-Response 1.5A LDO Regulator LDO Regulator Pos 3.3V 1.5A 6Pin(5+Tab) SOT-223 T/R
-
Stock Locations:
-
Availability:139 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.16
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS7A45xx devices are low-dropout (LDO) regulators optimized for fast transient response. The device can supply 1.5 A of output current with a dropout voltage of 300 mV. Operating quiescent current is 1 mA, dropping to less than 1 µA in shutdown. Quiescent current is well controlled; it does not rise in dropout as with many other regulators. In addition to fast transient response, the TPS7A45xx regulators have very-low output noise, which makes them ideal for sensitive RF supply applications.
- Output voltage range is from 1.21 to 20 V. The TPS7A45xx regulators are stable with output capacitance as low as 10 µF. Small ceramic capacitors can be used without the necessary addition of ESR as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting, and reverse-current protection. The devices are available in fixed output voltages of 1.5 V, 1.8 V, 2.5 V, 3.3 V, and as an adjustable device with a 1.21-V reference voltage.
TPS7A4533DCQR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-223-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 1.5 A |
| Supply Current | 1.5mA ~ 90mA |
| Quiescent Current | 1.00 mA |
| Output Capacitor Type | Ceramic |
| voltage rating | 0.3V @1.5A |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 20 V |
| Input Voltage (Min) | 1.9 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | ≤20 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
