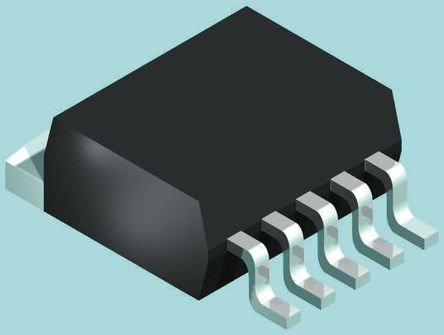

Image is for your reference only,please check specifications for details
- TPS7A4533DCQT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC12559075
-
Category:Voltage Regulator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Single Channel LDO Low-Noise Fast-Transient-Response 1.5A LDO Regulator LDO Regulator Pos 3.3V 1.5A 6Pin(5+Tab) SOT-223 T/R
-
Stock Locations:
-
Availability:305 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 15.09
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS7A4533DCQT is a 3.3V fixed output low-dropout (LDO) Linear Regulator optimized for fast transient response. The device can supply 1.5A of output current with a dropout voltage of 300mV. Operating quiescent current is 1mA, dropping to less than 1µA in shutdown. Quiescent current is well controlled, it does not rise in dropout as with many other regulators. In addition to fast transient response, the device has very-low output noise, which makes them ideal for sensitive RF supply applications. The device is stable with output capacitance as low as 10µF. Small ceramic capacitors can be used without the necessary addition of ESR as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse-current protection.
- 1% at 25°C High output voltage accuracy
- 35µVrms Low noise (10Hz to 100kHz)
- 68dB at 1kHz High ripple rejection
- No protection diodes needed
- Green product and no Sb/Br
TPS7A4533DCQT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-223-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 1.5 A |
| Supply Current | 1.5mA ~ 90mA |
| Number of Positions | 6 Position |
| Quiescent Current | 1 mA |
| Output Capacitor Type | Ceramic |
| voltage rating | 300 mV |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 20 V |
| Input Voltage (Min) | 2.1 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | ≤20 V |
| Show | |
| Size-Length | 6.55 mm |
| Size-Width | 3.55 mm |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
