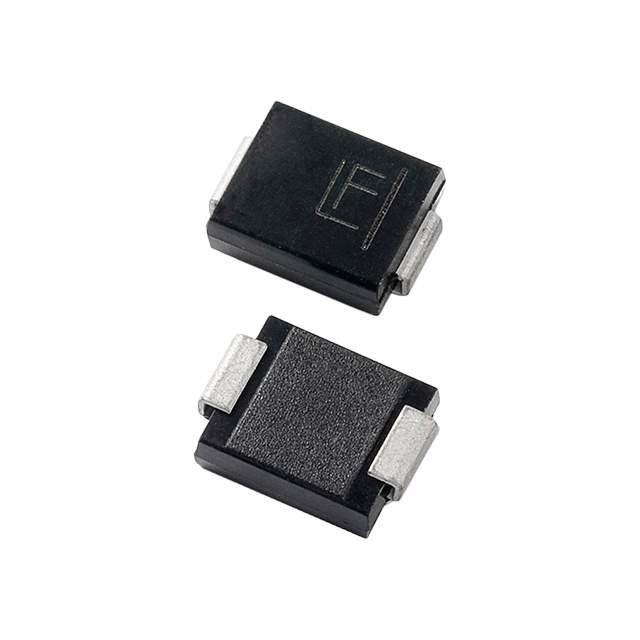

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TPSMD26CA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB-2
Breakdown Voltage	31.9 V
Power Dissipation	6.5 W
Clamping Voltage	42.1 V
Test Current	1 mA
Max Forward Surge Current (Ifsm)	300 A
Peak Pulse Power	3000 W
Min Breakdown Voltage	28.9 V
Maximum Forward Voltage (Max)	3.5 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
