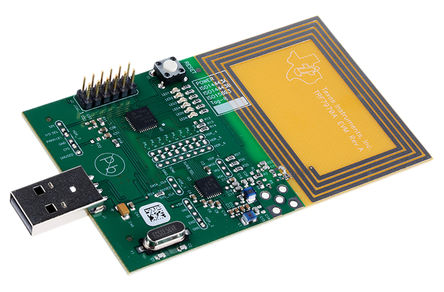

Image is for your reference only,please check specifications for details

TRF7970AEVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC44573555
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
TRF7970A Multi-Protocol Fully Integrated 13.56MHz RFID/NFC Transceiver IC Evaluation Module
Stock Locations:
Availability:
84 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 121.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TRF7970AEVM is an evaluation module for TRF7970A an integrated analog front end and data framing device for a 13.56MHz RFID/Near field communication system. Built in programming options make it suitable for a wide range of applications for proximity and vicinity identification systems. It can perform in one of three modes RFID/NFC Reader, NFC Peer, or in card emulation mode. Built in user configurable programming options make it suitable for a wide range of applications. The TRF7970A is configured by selecting the desired protocol in the control registers. Direct access to all control registers allows fine tuning of various reader parameters as needed.
NFC modes (RFID Reader\Writer, Peer to Peer and Card Emulation)
ISO15693 standard based transponders
ISO14443 standard based transponders (Types A&B)
FeliCa based transponders (UID read only)
Standalone polling mode for quick demonstration of transponder detection
Communication with host software graphical user interface (GUI) via USB VCP
Parallel or SPI connectivity via zero ohm jumpers
Logic analyzer/oscilloscope test points for relevant signal observation during code development
SMA (edge mount and through hole) pads for connecting customer designed antenna

Show

TRF7970AEVM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	Module
Frequency	13.56 MHz
Core Architecture	MSP430
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
