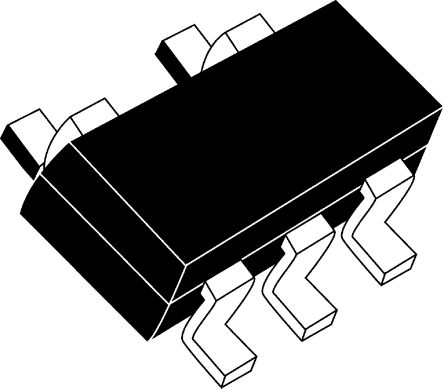

Image is for your reference only,please check specifications for details

TS3021ICT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC5034104
Category:
Comparator, Analog Comparator IC
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TS3021ICT Analogue Comparator, Rail to Rail, High Speed, 1, 2V to 5V, SC-70, 5Pins
Stock Locations:
Availability:
2,073 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.9

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3021ICT is a single Comparator features high-speed response time with rail-to-rail inputs. With a supply voltage specified from 2 to 5V, this comparator can operate over a wide temperature range. The TS3021 comparator offers micro-power consumption as low as a few tens of microamperes thus providing an excellent ratio of power consumption current versus response time.
Push-pull outputs
5kV HBM, 300V MM High ESD tolerance
200mA Latch-up immunity

Show

TS3021ICT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Current	0.115 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	600 W
Common Mode Rejection Ratio	79 dB
Quiescent Current	64.0 µA
Thermal Resistance	205 ℃/W
Input Offset Voltage	6 mV
Input Bias Current	160 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 5V
Supply Voltage (Max)	5 V
Supply Voltage (Min)	2 V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	ECL99
