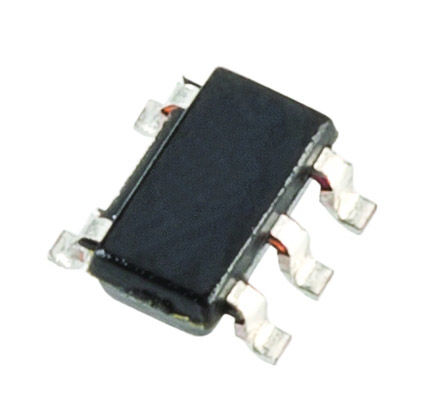

Image is for your reference only,please check specifications for details
- TS391IYLT - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC7975496
-
Category:Comparator, Analog Comparator IC
-
Package:SOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:TS391 Series 36V 0.25μA SMT Low-Power Single Voltage Comparator - SOT-23-5
-
Stock Locations:
-
Availability:294 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.68
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- These devices consist of a low power voltage comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible.
- This comparator also has a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
- ■ Wide single supply voltage range or dual supplies +2V to +34V or ±1V to ±17V
- ■ Very low supply current (0.2mA) independent of supply voltage (1mW/comparator at +5V)
- ■ Low input bias current: 25nA typ.
- ■ Low input offset current: ±5nA typ.
- ■ Low input offset voltage: ±1mV typ.
- ■ Input common-mode voltage range includes ground
- ■ Low output saturation voltage: 250mV typ. (Io=4mA)
- ■ Differential input voltage range equal to the supply voltage
- ■ TTL, DTL, ECL, CMOS compatible outputs
TS391IYLT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Output Current | 16mA @5V |
| Supply Current | 0.5 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Power Dissipation | 500 W |
| Input Offset Voltage | 5 mV |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 1.75 mm |
| Size-Width | 3 mm |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
