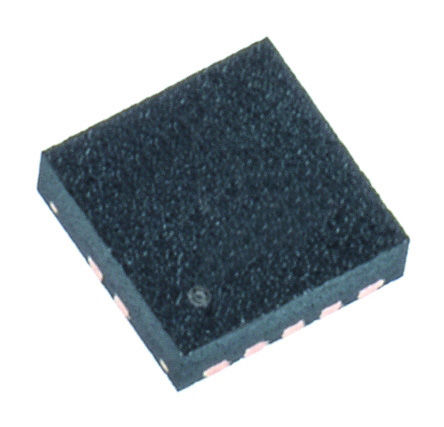

Image is for your reference only,please check specifications for details

TS3A24159DRCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC17380066
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
VSON-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS3A24159DRCR Analogue Switch, Dual Channel, SPDT, 2Channels, 0.3Ω, 1.65V to 3.6V, SON, 10Pins
Stock Locations:
Availability:
972 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.83

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3A24159DRCR is a single-pole double-throw (SPDT) dual bidirectional Analog Switch designed to operate from 1.65 to 3.6V. It offers low on-state resistance and excellent on-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has excellent total harmonic distortion (THD) performance, low On-state resistance and consumes very low power. These are some of the features that make this device suitable for a variety of markets and many different applications.
Specified break-before-make switching
Low on-state resistance (0.3R Maximum)
Low charge injection
Excellent ON-State Resistance Matching
Green product and no Sb/Br
Low Total Harmonic Distortion (THD)
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TS3A24159DRCR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSON-10
Number of Outputs	4 Output
Supply Current	15 nA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	10 Position
Voltage Nodes	1.80 V, 2.50 V, 3.00 V, 3.30 V
Bandwidth	23 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	23 MHz
Supply Voltage	1.65V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Weight	0.0004177586004 kg
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
