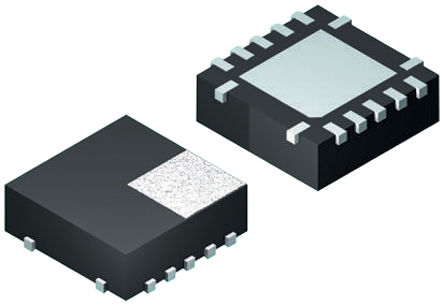

Image is for your reference only,please check specifications for details

TS3A4751RUCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1646563
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
QFN-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS3A4751RUCR Analogue Switch, Quad Channel, SPST, 4Channels, 0.9Ω, 1.6V to 3.6V, QFN, 14Pins
Stock Locations:
Availability:
278 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3A4751RUCR is a single-pole single-throw (SPST) quad low-voltage single-supply bidirectional Analog Switch that operates from a single 1.6 to 3.6V supply. This device has fast switching speeds, handles rail-to-rail analog signals and consumes very low quiescent power. The digital input is 1.8V CMOS compatible when using a 3V supply.
Low on-state resistance (RON)
High current-handling capacity (100mA Continuous)
ESD protection exceeds JESD-22
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TS3A4751RUCR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	QFN-14
Number of Outputs	4 Output
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Voltage Nodes	1.80 V, 2.50 V, 3.00 V, 3.30 V
Bandwidth	125 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	125 MHz
Supply Voltage	1.6V ~ 3.6V
	Show
Size-Length	2.05 mm
Size-Width	2.05 mm
Size-Height	0.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
