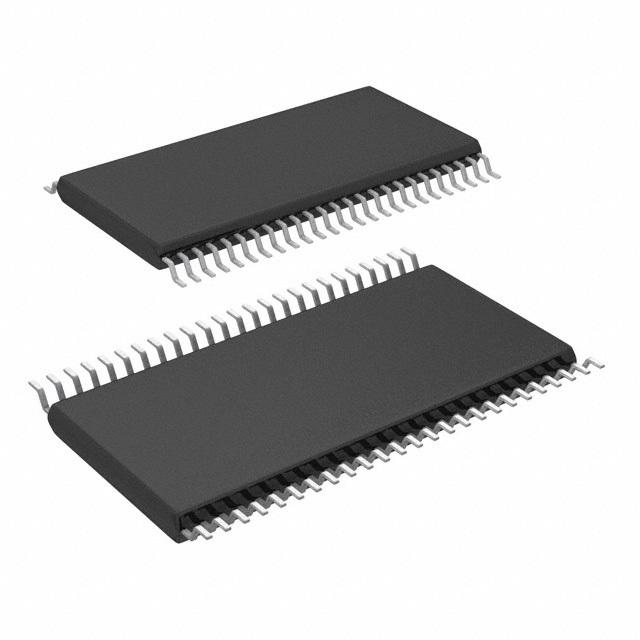

Image is for your reference only,please check specifications for details
- TS3L301DGGR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5502221
-
Category:Multiplexer IC
-
Package:TSSOP-48
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TS3L301DGGR Аналоговый мультиплексор/демультиплексор, 2:1, 4 схемы, 8 Ом, 250 мкА, 3 В – 3.6 В, TSSOP-48
-
Stock Locations:
-
Availability:1,893 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.88
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TS3L301DGGR — это 16-битный 8-битный мультиплексор/демультиплексор с одним входом выбора (SEL). Вход SEL управляет путём передачи данных мультиплексора/демультиплексора. Коммутатор локальной вычислительной сети (LAN) обеспечивает низкое и стабильное сопротивление во включенном состоянии (r on) и отличное согласование сопротивлений во включенном состоянии. Низкая входная/выходная ёмкость, широкая полоса пропускания, низкий разброс задержек и низкие перекрестные помехи между каналами делают это устройство пригодным для различных применений LAN, таких как 10/100/1000 Base-T.
- Широкая полоса пропускания 900 МГц (типовое значение)
- Низкие перекрестные помехи
- Низкий разброс задержек между битами
- Низкое и стабильное сопротивление во включенном состоянии
- Низкая входная/выходная ёмкость
- Переключение rail-to-rail на портах ввода/вывода данных (от 0 до 5 В)
- IOFF поддерживает режим частичного отключения питания
- Устойчивость к защелкиванию превышает 100 мА по JESD 78, класс II
- Электростатическая устойчивость (ESD) испытана по JESD 22
- Подходит для сигналов Ethernet 10/100/1000 Мбит/с
TS3L301DGGR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSSOP-48 |
| Number of Outputs | 8 Output |
| Supply Current | 250 µA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 8 Channel |
| Number of Positions | 48 Position |
| Bandwidth | 900 MHz |
| Number of Inputs | 16 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 900 MHz |
| Supply Voltage | 3V ~ 3.6V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
