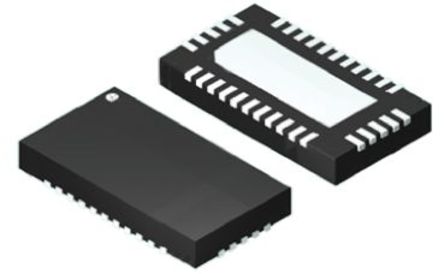

TS3V713ELRTGR - TI
Manufacturer:
TI
ManyChip's Part#:
MC11552635
Category:
Logic Control, Logic Gate IC
Package:
WFQFN-32
Datasheet:
Datasheet 3D Model
Description:
7Channel, 1: 2 Video Switch with Integrated Level Shifters 32-WQFN -40℃ to 85℃
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3V713EL is a high bandwidth, 7-channel video multiplexer/demultiplexer for switching between a single VGA source and one of two end points. The device is designed for ensuring video signal integrity and minimizing video signal attenuation by providing high bandwidth of 1.3 GHz.
The TS3V713EL has integrated level shifting buffers for the HSYNC and VSYNC signals which provide voltage level translation between 3.3V and 5V logic. The SCL and SDA lines use NMOS switches which clamp the output voltage to 1 V below VDD.
The video signals are protected against ESD with integrated diodes to VDD and GND that support levels up to ±2 kV Contact Discharge (IEC61000-4-2) and 8 kV Human Body Model (JESD22-A114E).

Show

TS3V713ELRTGR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	WFQFN-32
Supply Voltage (DC)	3.60V (max)
Number of Outputs	1 Output
Supply Current	200 µA
Number of Channels	7 Channel
Number of Bits	7 Bit
Propagation Delay Max (tpd)	250 ps
Bandwidth	1.3 GHz
Number of Inputs	7 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1.3 GHz
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	6.1 mm
Size-Width	3.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
