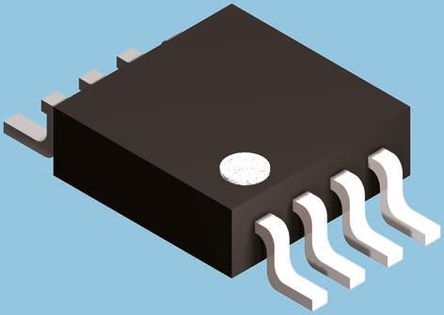

Image is for your reference only,please check specifications for details

TS5A3359DCUR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1552404
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
1Ω SP3T Analog Switch 5V/3.3V Single-Channel 3: 1 Multiplexer/Demultiplexer 8-VSSOP -40℃ to 85℃
Stock Locations:
Availability:
316 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.68

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS5A3359 device is a bidirectional, single channel, single-pole triple-throw (SP3T) analog switch that is designed to operate from 1.65 V to 5.5 V. This device provides a signal switching solution while maintaining excellent signal integrity, which makes the TS5A3359 suitable for a wide range of applications in various markets including personal electronics, test and measurement equipment, and portable instrumentation. The device maintains the signal integrity by its low ON-state resistance, excellent ON-state resistance matching, and total harmonic distortion (THD) performance. To prevent signal distortion during the transferring of a signal from one channel to another, the TS5A3359 device also has a specified break-before-make feature. The device consumes very low power and provides isolation when VCC = 0.

Show

TS5A3359DCUR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Number of Outputs	3 Output
Supply Current	16 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Number of Bits	1 Bit
Voltage Nodes	1.80 V, 2.50 V, 3.30 V, 5.00 V
Bandwidth	75.0 MHz
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	75 MHz
Supply Voltage	1.65V ~ 5.5V
	Show
Size-Length	2.1 mm
Size-Width	2.4 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
