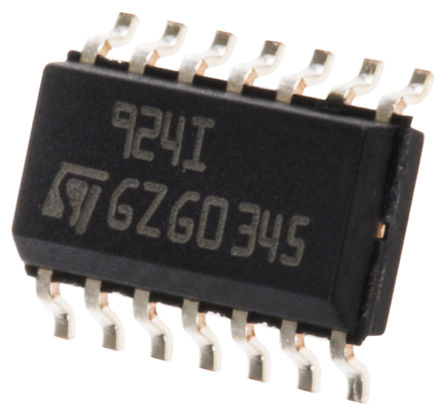

Image is for your reference only,please check specifications for details

TS924ID - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC12750034
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TS924ID Operational Amplifier, Quad, 4 Amplifier, 4MHz, 1.3V/µs, 2.7V to 12V, SOIC, 14Pins
Stock Locations:
Availability:
213 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.4

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS924ID is a quad Operational Amplifier with rail-to-rail input and output. The BiCMOS operational amplifier optimized and fully specified for 3 and 5V operation. High output current allows low load impedances to be driven. The TS924 device exhibits a very low noise, low distortion, low offset and high output current capability, making this device an excellent choice for low-voltage and battery-operated audio systems. The devices are stable for capacitive loads up to 500pF.
Latch-up immunity
9nV/√Hz Low noise
80mA (able to drive 32R loads) High output current
3kV ESD Internal protection
±1V Differential input voltage
2µV/°C Input offset voltage drift

Show

TS924ID Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	3.00 V
Operating Voltage	2.7V ~ 12V
Output Current	80 mA
Supply Current	1 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	60 dB
Bandwidth	4 MHz
Slew Rate	1.30 V/μs
Gain Bandwidth Product	4 MHz
Input Offset Voltage	3 mV
Input Bias Current	15 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	4 MHz
Minimum CMRR Range	60 dB
Supply Voltage	2.7V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
