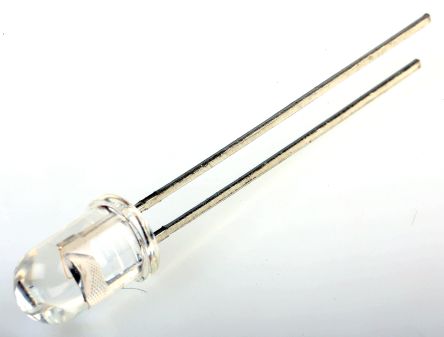

Image is for your reference only,please check specifications for details
- TSHG6400 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC34960783
-
Category:High Brightness LED
-
Package:T-1
-
Datasheet:Datasheet 3D Model
-
Description:Infrared Emitter, High Speed, 22°, T-1 3/4 (5mm), 100mA, 1.5V, 20ns, 13ns
-
Stock Locations:
-
Availability:10 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.81
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TSHG6400 is a 850nm Infrared Emitting Diode in GaAlAs double hetero (DH) technology. It is moulded in a clear, untinted plastic package.
TSHG6400 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | T-1 |
| Number of Positions | 2 Position |
| Forward Voltage | 1.5 V |
| Wavelength | 850 nm |
| Viewing Angle | 44° |
| Peak Wavelength | 850 nm |
| Power Dissipation | 250 W |
| Rise Time | 20 ns |
| Test Current | 100 mA |
| Forward Current | 100 mA |
| Maximum Forward Voltage (Max) | 1.5 V |
| Forward Current (Max) | 100 mA |
| Fall Time | 13 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Size-Height | 8.7 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
