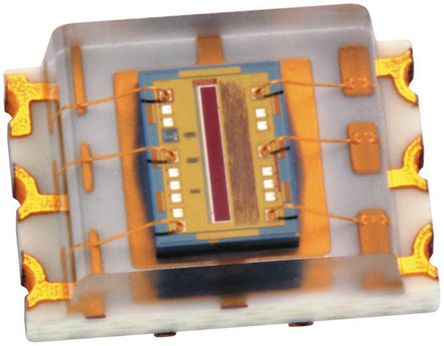

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TSL2561T is a light to digital converter in 6 pin TMB package. This device transforms light intensity to digital signal output capable of direct I2C interface. It combines one broadband photodiode (visible plus infrared) and one infrared responding photodiode on single CMOS integrated circuit capable of providing a near photopic response over an effective 20bit dynamic range (16bit resolution). Two integrating ADCs convert photodiode currents to a digital output that represents irradiance measured on each channel. This digital output can be input to microprocessor where illuminance (ambient light level) in lux is derived using an empirical formula to approximate human eye response. The TSL2561 device supports traditional level style interrupt that remains asserted until firmware clears it.
- Approximates human eye response
- Programmable interrupt function with user defined upper and lower threshold settings
- 16bit digital output with I2C fast mode at 400KHz
- Programmable analogue gain and integration time supporting 1000000 to 1 dynamic range
- Automatically rejects 50/60Hz lighting ripple
- Low active power (0.75mW typical) with power down mode
- Supply voltage range from 2.7V to 3.6V
- Operating free air temperature from -30°C to 70°C
- Oscillator frequency (fosc) of 735KHz
TSL2561T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | TMB-6 |
| Frequency | 735 kHz |
| Supply Voltage (DC) | 2.70V (min) |
| Output Current | 6.00 mA |
| Supply Current | 240 µA |
| Number of Positions | 6 Position |
| Wavelength | 640 nm |
| Peak Wavelength | 640 nm |
| Power Dissipation | 0.75 mW |
| Rise Time | 300 ns |
| Fall Time | 300 ns |
| Fall Time (Max) | 300 ns |
| Fall Time (Max) | 300 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Supply Voltage | 2.7V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 1.25 mm |
| Size-Width | 0.4 mm |
| Size-Height | 1.35 mm |
| Operating Temperature | -30℃ ~ 70℃ |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
| HK STC License | NLR |
