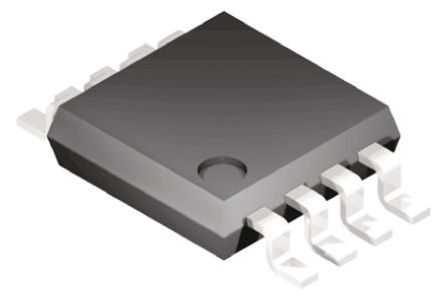

Image is for your reference only,please check specifications for details

TSU102IST - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC51077268
Category:
Operational Amplifier, OP Amp IC
Package:
Mini-SO-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TSU102IST Operational Amplifier, Dual, 2 Amplifier, 9kHz, 3V/ms, 1.5V to 5.5V, Mini SOIC, 8Pins
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSU102IST is a nanopower dual CMOS Operational Amplifier with rail-to-rail input and output. The TSU102 operational amplifier offers an ultra low-power consumption of 580nA typical and 750nA maximum per channel when supplied by 1.8V. Combined with a supply voltage range of 1.5 to 5.5V, these features allow the TSU10x series to be efficiently supplied by a coin type Lithium battery or a regulated voltage in low-power applications. The 8kHz gain bandwidth of this device make them ideal for sensor signal conditioning and battery supplied applications.
Unity gain stable
Tolerance to power supply transient drops
Accurate signal conditioning of high impedance sensors
Application performances guaranteed over industrial temperature range
Fast desaturation
Submicro ampere current consumption - 580nA typical per channel at 25°C at VCC=1.8V
5pA at 25°C Maximum low input bias current
2kV HBM High tolerance to ESD

Show

TSU102IST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Mini-SO-8
Output Current	11 mA
Supply Current	650 nA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	82 dB
Bandwidth	9 kHz
Gain Bandwidth Product	0.009 MHz
Input Offset Voltage	100 µV
Input Bias Current	1 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	9 kHz
Minimum CMRR Range	65 dB
Supply Voltage	1.5V ~ 5.5V
Supply Voltage (Max)	5.5V ~ 6V
	Show
Size-Length	3.2 mm
Size-Width	3.1 mm
Size-Height	0.86 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
