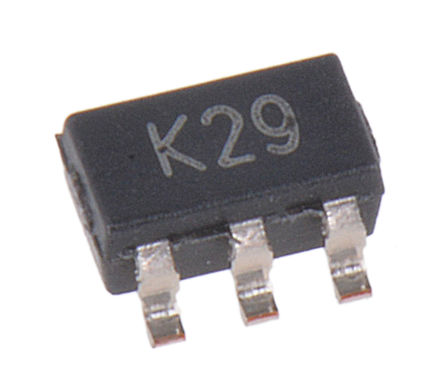

Image is for your reference only,please check specifications for details

TSX711ILT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC7697031
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TSX711ILT Operational Amplifier, Single, 1 Amplifier, 2.7MHz, 1.4V/µs, 2.7V to 16V, SOT-23, 5Pins
Stock Locations:
Availability:
2,162 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSX711ILT is a low-power precision single Operational Amplifier offers high precision functioning with low input offset voltage down to a maximum of 200µV at 25°C. In addition, their rail-to-rail input and output functionality allow these products to be used on full range input and output without limitation. This is particularly useful for a low-voltage supply such as 2.7V that the TSX71x is able to operate with. Thus, the TSX71x has the great advantage of offering a large span of supply voltages, ranging from 2.7 to 16V. It can be used in multiple applications with unique reference. Low input bias current performance makes the TSX71x perfect when used for signal conditioning in sensor interface applications. In addition, low-side and high-side current measurements can be easily made thanks to rail-to-rail functionality.
Unity gain stable
800µA Maximum low current consumption
50pA Maximum low input bias current
2.5µV/°C Input offset voltage drift

Show

TSX711ILT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Output Current	70 mA
Supply Current	660 µA
Number of Circuits	1 Circuit
Number of Positions	5 Position
Common Mode Rejection Ratio	116 dB
Bandwidth	2.7 MHz
Slew Rate	1.40 V/μs
Gain Bandwidth Product	2.7 MHz
Input Offset Voltage	200 µV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2.7 MHz
Minimum CMRR Range	94 dB
Supply Voltage	2.7V ~ 16V
	Show
Size-Length	3 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
