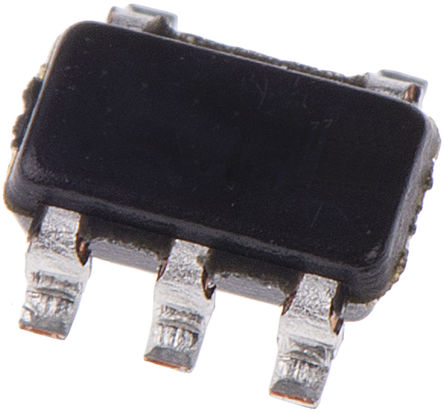

TPS62260DDCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC10264830
Category:
DC to DC Converter
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator 2.25MHz 600mA Step-Down Converter in 2x2mm SON/TSOT23 Package Conv DC-DC 2.3V to 6V Synchronous Step Down Single-Out 0.6V to 6V 0.6A 5Pin TSOT-23 T/R
Stock Locations:
Availability:
313 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.84

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS62260DDCT is a highly-efficient synchronous step-down DC-to-DC Converter for use with low power DSP supply. It provides up to 600mA output current from a single Li-ion cell and is ideal for battery-powered applications such as mobile phones. With a wide input voltage range of 2 to 6V, the device also supports two- and three-cell alkaline batteries, 3.3V and 5V input voltage rails. It operates at 2.25MHz fixed-switching frequency and enters power save mode operation at light load currents to maintain high efficiency over the entire load current range. The power save mode is optimized for low-output voltage ripple. For low noise applications, the device can be forced into fixed frequency pulse-width modulation (PWM) mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1µA. It allows the use of small inductors and capacitors to achieve a small solution size.
Extended voltage range
Power save mode at light load currents
100% duty cycle for lowest dropout
Voltage positioning at light loads
Allows <1mm solution height
±1.5% Output voltage accuracy in PWM mode
15µA Typical quiescent current
Green product and no Sb/Br

Show

TPS62260DDCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Number of Outputs	1 Output
Output Voltage	0.6V ~ 6V
Output Current	600 mA
Supply Current	15.0 µA
Number of Positions	5 Position
Quiescent Current	15.0 µA
Number of Regulated Outputs	1 Output
Output Power	400 mW
Switching Frequency	2.25 MHz
Topology	Buck
Switching Current	1 A
Input Voltage (Max)	6 V
Input Voltage (Min)	2 V
Output Voltage (Max)	6 V
Output Voltage (Min)	600 mV
Output Current (Max)	0.6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2V ~ 6V
	Show
Size-Length	3.05 mm
Size-Width	3.05 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
