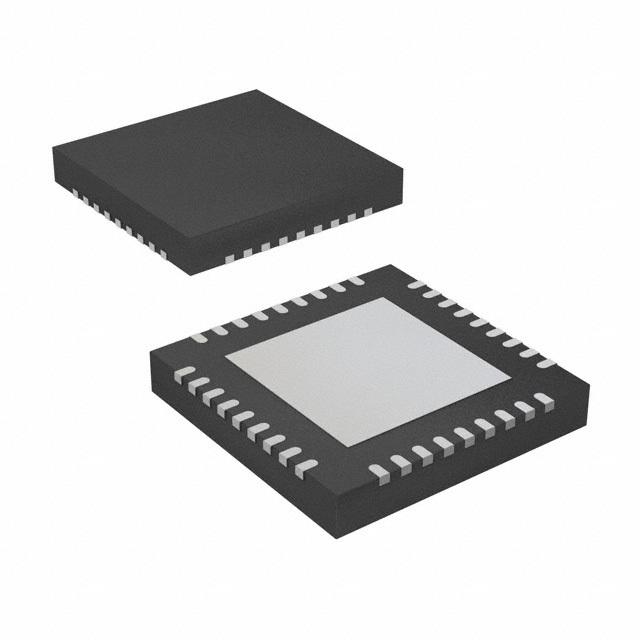

Image is for your reference only,please check specifications for details

TX810IRHHT - TI
Manufacturer:
TI
ManyChip's Part#:
MC8484196
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
VQFN-36
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TX810IRHHT Analog Switch, SPST, 8Channels, 67Ω, 2.5V to 5V, VQFN, 36Pins
Stock Locations:
Availability:
202 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.87

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TX810IRHHT is a 8-channel programmable Transmit/Receive Switch provides an integrated solution for a wide range of ultrasound applications. The internal diodes limit the output voltage when high voltage transmitter signals are applied to the input. While the insertion loss of TX810 is minimized during receive mode. Unlike conventional T/R switches, the TX810 contains a 3-bit interface used to program bias current from 7 to 0mA for different performance and power requirements. When the it bias current is set as 0mA (i.e., high-impedance mode), the device is configured as power-down mode. In the high-impedance mode, TX810 does not add additional load to high-voltage transmitters. In addition, the device can wake up from power-down mode in less than 1µs. With these advanced programmability features, significant power saving can be achieved in systems.
Flexible programmability
Easy power-up/down control
Fast wake up time
Dual supply operation
Optimized insertion loss
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TX810IRHHT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	VQFN-36
Number of Outputs	8 Output
Number of Channels	8 Channel
Number of Positions	36 Position
Power Dissipation	0.644 W
Bandwidth	140 MHz
Number of Inputs	8 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	140 MHz
Power Dissipation (Max)	644 mW
Supply Voltage	2.5V ~ 5V
Supply Voltage (Min)	2.5 V
	Show
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
