UA78L09ACPK TI - Voltage Regulator - ManyChip Electronics

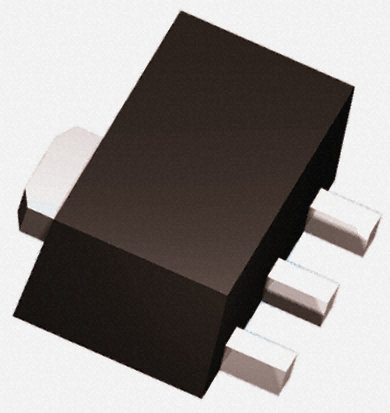

Image is for your reference only,please check specifications for details

UA78L09ACPK - TI
Manufacturer:
TI
ManyChip's Part#:
MC13799585
Category:
Voltage Regulator
Package:
SOT-89-3
Datasheet:
Datasheet 3D Model
Description:
Стандартный стабилизатор напряжения 3/8-выводной, 100мА, фиксированный 9В, положительный стабилизатор напряжения, LDO-стабилизатор, положительный 9В, 0.1А, 4 вывода (3+Tab), SOT-89, лента и катушка
Stock Locations:
Availability:
81 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.51

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description/ordering information
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of
applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high-current voltage regulators. One of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal-shutdown features of these regulators essentially make them immune to overload. When used as a replacement for a Zener diode-resistor combination, an effective improvement in output impedance can be obtained, together with lower bias current.
3-Terminal Regulators
Output Current Up To 100 mA
No External Components
Internal Thermal-Overload Protection
Internal Short-Circuit Current Limiting

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Number of Outputs	1 Output
Input Voltage (DC)	24.0V (max)
Output Voltage	9 V
Output Current	100 mA
Number of Positions	3 Position
Quiescent Current	4.10 mA
Output Capacitor Type	Capacitor Free
voltage rating	1.7V @40mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	24 V
Input Voltage (Min)	11.5 V
Output Voltage (Min)	9 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±5 %
Input Voltage	11.5V ~ 24V
	Show
Size-Length	4.5 mm
Size-Width	2.5 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
