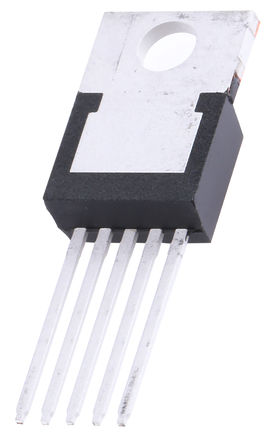

Image is for your reference only,please check specifications for details

UC2950T - TI
Manufacturer:
TI
ManyChip's Part#:
MC17526268
Category:
FET Driver
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
Texas Instruments UC2950T, Dual MOSFET Power Driver 4A Half Bridge, 8 → 35V, Non-Inverting, 5Pin TO-220
Stock Locations:
Availability:
2,075 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.34

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Manage power passing through your transistors and gates with the use of Texas Instruments" UC2950T power driver. This device has a maximum power dissipation of 15000 mW. Its maximum power dissipation is 15000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 8 V and a maximum of 35 V. This gate driver has a minimum operating temperature of -20 °C and a maximum of 100 °C.

Show

UC2950T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Frequency	0.3 MHz
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Output Current	4 A
Power Dissipation	2 W
Output Current (Max)	4 A
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	15000 mW
Supply Voltage	8V ~ 35V
Supply Voltage (Max)	35 V
Supply Voltage (Min)	8 V
	Show
Size-Length	10.16 mm
Size-Width	4.58 mm
Size-Height	8.51 mm
Operating Temperature	-20℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
