Description
- DESCRIPTION
- The UC1710 family of FET drivers is made with a high-speed Schottky process to interface between low-level control functions and very high-power switching devices-particularly power MOSFET’s. These devices accept low-current digital inputs to activate a high-current, totem pole output which can source or sink a minimum of 6A.
- FEATURES
- •Totem Pole Output with 6A Source/Sink Drive
- •3ns Delay
- •20ns Rise and Fall Time into 2.2nF
- •8ns Rise and Fall Time into 30nF
- •4.7V to 18V Operation
- •Inverting and Non-Inverting Outputs
- •Under-Voltage Lockout with Hysteresis
- •Thermal Shutdown Protection
- •MINIDIP and Power Packages

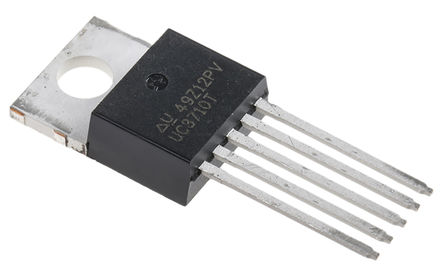

UC3710T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | TO-220-5 |
| Supply Voltage (DC) | 18.0V (max) |
| Rise/Fall Time | 85 ns |
| Number of Outputs | 1 Output |
| Output Current | 250 mA |
| Supply Current | 35 mA |
| Number of Positions | 5 Position |
| Power Dissipation | 3 W |
| Rise Time | 70 ns |
| Output Current (Max) | 6 A |
| Fall Time | 80 ns |
| Fall Time (Max) | 80 ns |
| Fall Time (Max) | 70 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 3000 mW |
| Supply Voltage | 4.7V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 4.7 V |
| Show | |
| Size-Length | 10.16 mm |
| Size-Width | 4.58 mm |
| Size-Height | 8.51 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
