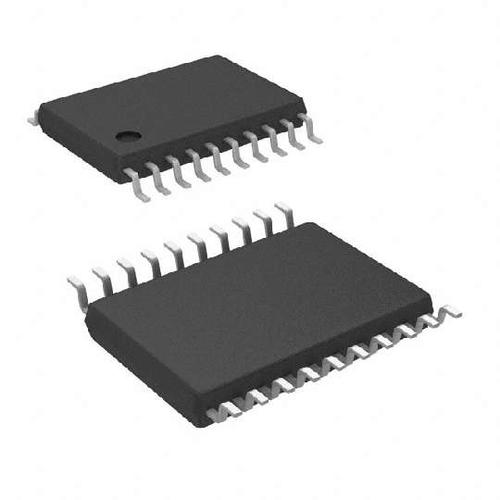

Image is for your reference only,please check specifications for details
- UCC28070PWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1311438
-
Category:Power Management IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Power Factor Correction CONTRLR 20mA 30kHz to 300kHz 20Pin TSSOP T/R
-
Stock Locations:
-
Availability:9,572 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.46
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The UCC28070 is an advanced power factor correction device that integrates two pulse-width modulators (PWMs) operating 180° out of phase. This interleaved PWM operation generates
- substantial reduction in the input and output ripple currents, and the conducted-EMI filtering becomes easier and less expensive. A significantly improved multiplier design provides a shared current reference to two independent current amplifiers that ensures matched average current mode control in both PWM outputs while maintaining a stable, low-distortion sinusoidal input line current.
- FEATURES
- • Interleaved Average Current-Mode PWM Control with Inherent Current Matching
- • Advanced Current Synthesizer Current Sensing for Superior Efficiency
- • Highly-Linear Multiplier Output with Internal Quantized Voltage Feed-Forward Correction for Near-Unity PF
- • Programmable Frequency (10 kHz to 300 kHz)
- • Programmable Maximum Duty-Cycle Clamp
- • Programmable Frequency Dithering Rate and Magnitude for Enhanced EMI Reduction
- – Magnitude: 3 kHz to 30 kHz
- – Rate: Up to 30 kHz
- • External Clock Synchronization Capability
- • Enhanced Load and Line Transient Response through Voltage Amplifier Output Slew-Rate
- Correction
- • Programmable Peak Current Limiting
- • Bias-Supply UVLO, Over-Voltage Protection, Open-Loop Detection, and PFC-Enable Monitoring
- • External PFC-Disable Interface
- • Open-Circuit Protection on VSENSE and VINAC pins
- • Programmable Soft Start
- • 20-Lead TSSOP Package
UCC28070PWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Frequency | 0.3 MHz |
| Number of Positions | 20 Position |
| Power Dissipation | 800 mW |
| Switching Frequency | 300 kHz |
| Duty Cycle | 95 % |
| Maximum Duty Cycle | 98 % |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 11.2V ~ 21V |
| Supply Voltage (Max) | 21 V |
| Supply Voltage (Min) | 11.2 V |
| Show | |
| Size-Length | 6.6 mm |
| Size-Width | 1.2 mm |
| Size-Height | 6.6 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
