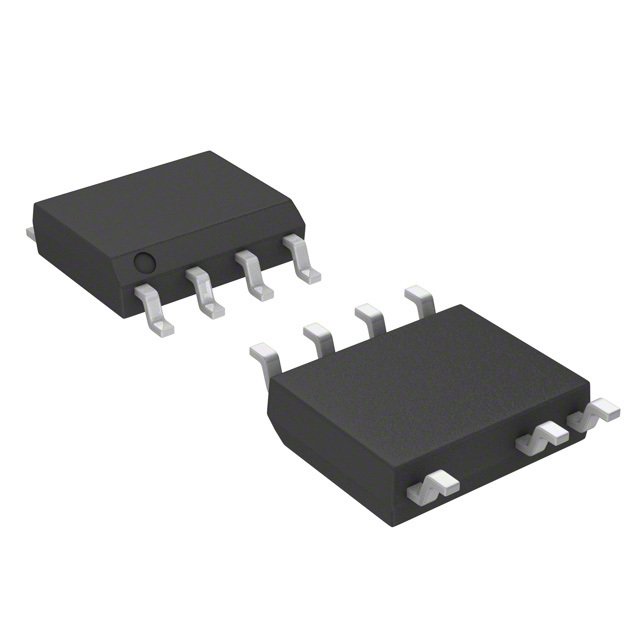

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The UCC28710 family of flyback power supply controllers provides isolated-output Constant-Voltage (CV) and Constant-Current (CC) output regulation without the use of an optical coupler. The devices
process information from the primary power switch and an auxiliary flyback winding for precise control of output voltage and current.
FEATURES
• < 10-mW No-Load Power
APPLICATIONS
• USB-Compliant Adapters and Chargers for
Consumer Electronics
– Smart phones
– Tablet computers
– Cameras
• Standby Supply for TV and Desktop
• White Goods
• Primary-Side Regulation (PSR) Eliminates Opto-Coupler
• ±5% Voltage and Current Regulation Across Line and Load
• 700-V Start-Up Switch
• 100-kHz Maximum Switching Frequency Enables High-Power Density Charger Designs
• Quasi-Resonant Valley-Switching Operation for Highest Overall Efficiency
• Frequency Jitter to Ease EMI Compliance
• Wide VDD Range Allows Small Bias Capacitor
• Clamped Gate-Drive Output for MOSFET
• Overvoltage, Low-Line, and Overcurrent Protection Functions
• Programmable Cable Compensation (UCC28710, UCC28714 and UCC28715)
• NTC Resistor Interface (UCC28711, UCC28712 and UCC28713) with Fixed Cable Compensation Options
• SOIC-7 Package

Show
