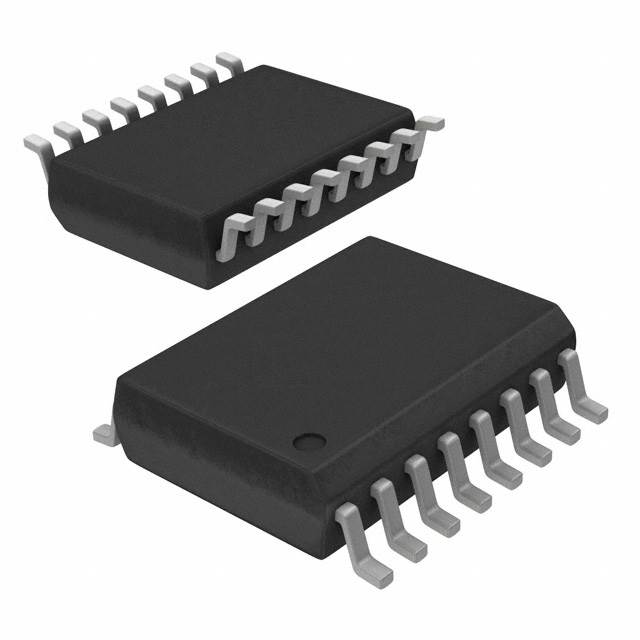

Image is for your reference only,please check specifications for details

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The UCC2891/2/3/4 family of PWM controllers is designed to simplify implementation of the various active clamp/reset switching power topologies. The UCC289x is a peak current-mode, fixed
frequency, high-performance pulse width modulator. It includes the logic and the drive capability for the auxiliary switch with a simple method of programming the critical delays for proper active clamp operation.
FEATURES
Ideal for Active Clamp/Reset Forward, Flyback Converters
Provides Complementary Auxiliary Driver with Programmable Deadtime (Turn-On Delay) between AUX and MAIN Switches
Peak Current-Mode Control with Cycle-by-Cycle Current Limiting
110-V Input Startup Regulator on UCC2891/3
TrueDrive™ 2-A Sink, 2-A Source Outputs
Accurate Line UV and Line OV Threshold
Programmable Slope Compensation
1.0-MHz Synchronizable Oscillator
Precise Programmable Maximum Duty Cycle
Programmable Soft Start
APPLICATIONS
150-W to 700-W SMPS
High-Efficiency, Low EMI/RFI Off-Line or DC/DC Converters
Server, 48-V Telecom, Datacom
High Power Adapter, LCD-TV and PDP-TV

Show

UCC2893D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	1 MHz
Supply Voltage (DC)	14.5V (max)
Number of Outputs	1 Output
Input Voltage (DC)	110 V
Output Voltage	11.1 V
Output Current	150 mA
Supply Current	3 mA
Number of Positions	16 Position
Quiescent Current	2.00 mA
Number of Regulated Outputs	1 Output
Rise Time	19 ns
Switching Frequency	1000 kHz
Topology	Flyback, Forward
Duty Cycle	73 %
Maximum Duty Cycle	73 %
Fall Time	14 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8.5V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	8.5 V
Input Voltage	110 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
