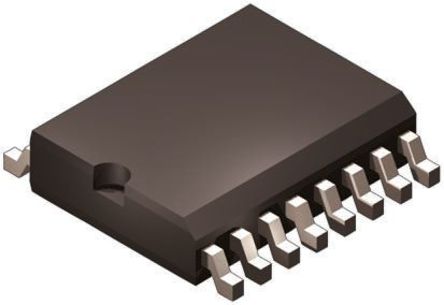

UCC3818D - TI
Manufacturer:
TI
ManyChip's Part#:
MC15885365
Category:
Power Management IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UCC3818D PFC Controller IC, 12V to 17V & 4mA Supply, 12V Lockout, 95% Duty Cycle, 100kHz, SOIC-16
Stock Locations:
Availability:
9,745 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UCC3818D is a BiCMOS Power Factor Preregulator offers new features such as lower start-up current, lower power dissipation, overvoltage protection, a shunt UVLO detect circuitry, a leading-edge modulation technique to reduce ripple current in the bulk capacitor and an improved, low-offset (±2mV) current amplifier to reduce distortion at light load conditions. It provides all the functions necessary for active power factor corrected pre-regulators. This controller achieves near unity power factor by shaping the ac input line current waveform to correspond to that of the ac input line voltage. Average current-mode control maintains stable, low distortion sinusoidal line current. It offers an on-chip shunt regulator with low start-up current, suitable for applications utilizing a bootstrap supply.
Controls boost pre-regulator to near-unity power factor
Limits line distortion
World-wide line operation
Over-voltage protection
Accurate power limiting
Average current mode control
Improved noise immunity
Improved feed-forward line regulation
Leading edge modulation
Low-power BiCMOS operation
Green product and no Sb/Br

Show

UCC3818D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	250 kHz
Supply Voltage (DC)	17.0V (max)
Number of Outputs	1 Output
Output Voltage	5.50 V
Number of Positions	16 Position
Power Dissipation	1.00 W
Switching Frequency	6kHz ~ 220kHz
Duty Cycle	95 %
Maximum Duty Cycle	99 %
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	9.7V ~ 18V
Supply Voltage (Max)	17 V
Supply Voltage (Min)	12 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
