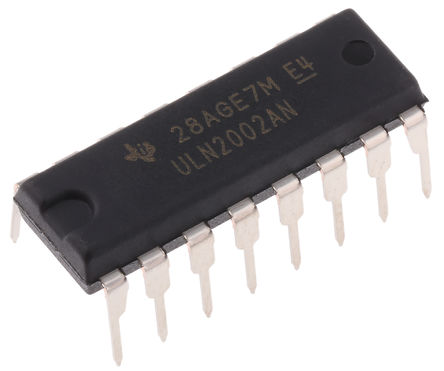

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ULN2002AN is an NPN Darlington Transistor Array each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500mA. The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers and logic buffers.
Output clamp diodes

Show

ULN2002AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Number of Outputs	7 Output
Output Voltage	50 V
Output Current	0.5 A
Number of Channels	7 Channel
Number of Positions	16 Position
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	50 V
Drivers Per Package	7
Output Current (Max)	500 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	6V ~ 15V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-20℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
