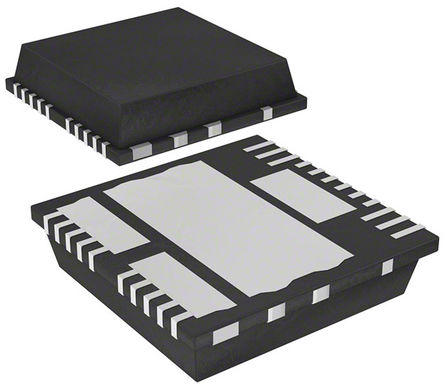

Image is for your reference only,please check specifications for details
- IR3898MTRPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC11146383
-
Category:DC to DC Converter
-
Package:QFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 1V to 21V Step Down Single-Out 0.5V to 18.06V 6A 16Pin QFN EP T/R
-
Stock Locations:
-
Availability:283 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.08
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- IR3898 Series Single 5 - 21 Vin 6 A Synchronous Buck Regulator - PQFN-16
IR3898MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | QFN-16 |
| Frequency | 1.5 MHz |
| Operating Voltage | 5V ~ 21V |
| Number of Outputs | 1 Output |
| Output Voltage | 0.5V ~ 18.06V |
| Output Current | 6 A |
| Number of Channels | 1 Channel |
| Number of Positions | 17 Position |
| Switching Frequency | 300kHz ~ 1.5MHz |
| Thermal Resistance | 32 ℃/W |
| Input Voltage (Max) | 21 V |
| Input Voltage (Min) | 1 V |
| Output Voltage (Max) | 18.06 V |
| Output Voltage (Min) | 0.5 V |
| Output Current (Max) | 6 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5V ~ 7.5V |
| Supply Voltage (Min) | 1 V |
| Input Voltage | 1V ~ 21V |
| Show | |
| Size-Length | 4 mm |
| Size-Width | 5 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
