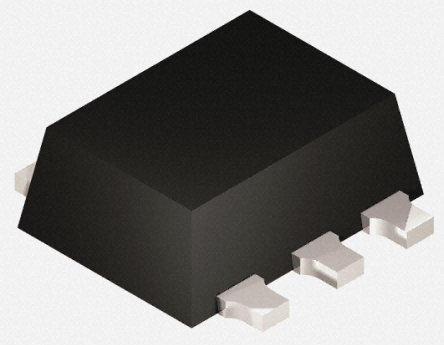

USBUF01P6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC102351366
Category:
RFI Shielding
Package:
SOT-666
Datasheet:
Datasheet 3D Model
Description:
RC (Pi) EMI Filter 2nd Order Low Pass 2Channel R = 33Ω, C = 47pF SOT-563, SOT-666
Stock Locations:
Availability:
100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The USBUF01P6 is an IPAD™ EMI Filter and Line Termination for USB upstream ports. The USB specification requires upstream ports to be terminated with pull-up resistors from the D+ and D- lines to Vbus. For the implementation of USB systems, the radiated and conducted EMI should be kept within the required levels as stated by the FCC regulations. In addition to the requirements of termination and EMC compatibility, the computing devices are required to be tested for ESD susceptibility. The USBUF01P6 provides the recommended line termination while implementing a low pass filter to limit EMI levels and providing ESD protection which exceeds IEC 61000-4-2 level 4 standard.
Monolithic device with recommended line termination for USB upstream ports
Integrated Rt series termination and Ct bypassing capacitors
EMI / RFI noise suppression
Required line termination for USB upstream ports
High flexibility in the design of high density boards
Tailored to meet USB 2.0 standard (low speed and full speed data transmission)

Show

USBUF01P6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-666
Capacitance	47.0 pF
Number of Channels	2 Channel
Number of Positions	6 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	0.6 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
