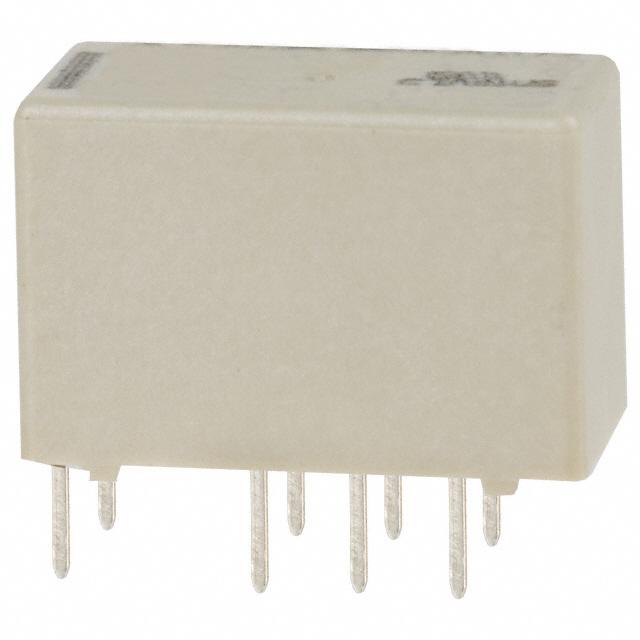

Image is for your reference only,please check specifications for details

V23079A2003B301 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC6805204
Category:
Industrial Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Signal Relay 12VDC 2A DPDT (( 14.6mm 7.2mm 9.5mm)) Through Hole Automotive Medical
Stock Locations:
Availability:
204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.21

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

2 pole safety relay with either 1NO+1NC or 2CO contacts, Forcibly guided contacts according to EN 50205, Rated current 6 A, 6 kV surge resistance between poles

Show

V23079A2003B301 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Voltage Rating (DC)	220 V
Voltage Rating (AC)	250 V
Insulation Resistance	>1000 MΩ
Input Voltage (DC)	12.0 V
Contacts Type	DPDT
Power Consumption	140 mW
Contact Current Rating	2 A
Coil Voltage	12 VDC
Coil Current	11.66 mA
Coil Power (DC)	140 mW
Coil Resistance	1.029 KΩ
Current Rating (Max)	2 A
Coil Voltage (DC)	12 V
Input Power (Max)	60W, 62.5VA
Switching Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	<50 mΩ
	Show
Size-Length	14.6 mm
Size-Width	9.5 mm
Size-Height	9.5 mm
Contact Material	Silver Nickel, Gold
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
HTS Code	8536410030;8536490099
ECCN Code	EAR99
