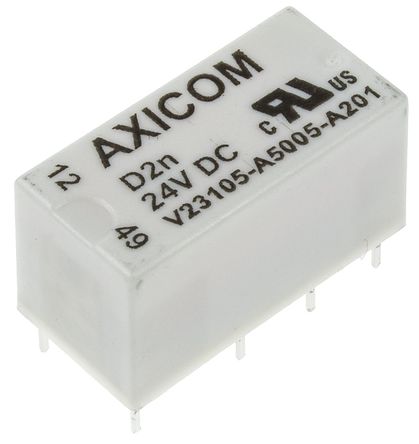

V23105A5005A201 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP
Current Rating	3 A
Contact Current Rating	3 A
Coil Voltage	24 VDC
Coil Current	6.2 mA
Coil Resistance	3.84 kΩ
Current Rating (Max)	3 A
Coil Voltage (DC)	24 V
Coil Power	150 mW
Input Power (Max)	60W, 125VA
Switching Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	250 VAC
Maximum Contact Resistance (Max)	<100 mΩ
	Show
Size-Length	20.2 mm
Size-Width	10 mm
Size-Height	10.8 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536490075
ECCN Code	EAR99
