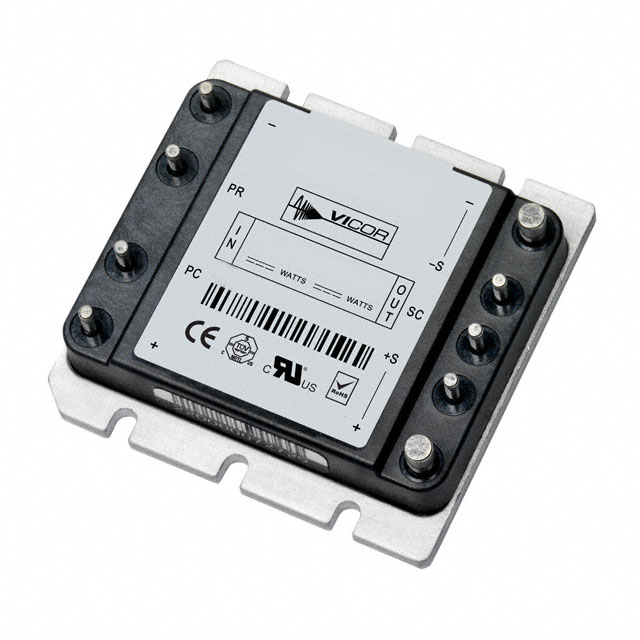

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Isolated Module DC DC Converter 1 Output 5V 40A 18V - 36V Input
V24B5H200BL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 9 Pin |
| Case/Package | DIP-9 |
| Power Rating | 200 W |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 40 A |
| Output Power | 200 W |
| Isolation Voltage | 3 kV |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 18 V |
| Output Current (Max) | 40 A |
| Input Power (Max) | 200 W |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 18V ~ 36V |
| Show | |
| Size-Length | 57.9 mm |
| Size-Width | 55.9 mm |
| Size-Height | 12.7 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
