Description

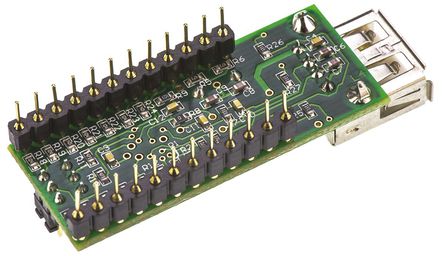

The VDIP1 is a MCU to embedded USB host controller development module for the VNC1L IC device. The Vinculum VNC1L is the first of Vinculum family of embedded USB host controller integrated circuit devices. Not only is it able to handle the USB host interface and data transfer functions but owing to the inbuilt MCU and embedded flash memory, Vinculum can encapsulate the USB device classes as well. The VDIP1 module is targeted for MCU to USB host / slave interface applications. This module is supplied on a PCB designed to fit into a 24 pin DIP socket and provides access to the UART, parallel FIFO and SPI interface pins on the VNC1L device, via its AD and AC bus pins.
USB single "A" type USB socket to interface with USB peripheral devices
Second USB interface port available via module pins if required
Jumper selectable UART, parallel FIFO or SPI MCU interfaces
Single 5V supply input from USB connection (no external supply necessary)
Auxiliary 3.3V/200mA power output to external logic
Program or update firmware via USB flash disk or via UART/parallel FIFO/SPI interface
Power and traffic indicator LED
VNC1L firmware programming control pins PROG# and RESET# brought out onto jumper interface
The module is ideal for rapid prototyping and development of VNC1L designs

Show

VDIP1 Specifications
