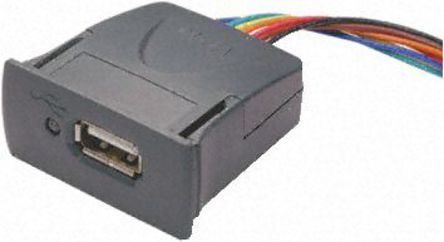

Image is for your reference only,please check specifications for details

VDRIVE2 - FTDI Chip
Manufacturer:
FTDI Chip
ManyChip's Part#:
MC10334000
Category:
USB Controller IC
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
USB Interface, Data Collection, Monitoring, Remote Control, Sensor Networks, USB, 4.75V, 5.25V
Stock Locations:
Availability:
561 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 42.83

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

VDrive2 is a USB Flash Drive interface module, possibly the easiest solution for adding a USB Flash Drive interface to an existing product. The module features a USB connector interface connected to VNC1L USB Host controller. The module provides a simple 4 signal interface supporting easy connectivity to an external device via UART or SPI. The connector interface also features +5V and ground connections. USB interfacing is carried out using the Vinculum VDAP firmware. The VDrive2 ideal for evaluation and development of VNC1L designs. Further with its neat enclosure and attractive quantity discount pricing the module is ideal for incorporation into finished product designs. The Vinculum VNC1L is the first of FTDI"s Vinculum family of Embedded SoC USB host controller integrated circuit devices. Able to handle the USB Host Interface and data transfer functions but owing to the inbuilt MCU and embedded Flash memory, Vinculum can encapsulate the USB device classes as well.
Uses F.T.D.I."s VNC1L embedded USB host controller I.C. device
USB A" type socket to connect USB Flash disk
Traffic indicator LED
2mm (0.08") pitch 8 pin connector
8-way header interconnect cable provided
Only four signals to connect, excluding power and ground
Jumper selectable UART or SPI interfaces
Single 5V supply input, uses Vinculum VDAP firmware and command set
Enclosure with snap in place clips allows for easy front panel mounting
VDrive2 is a Pb -free, RoHS complaint development module

Show

VDRIVE2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Number of Pins	10 Pin
Case/Package	Module
Pin Pitch	2.00 mm
Supply Voltage (DC)	4.75V (min)
FLASH Memory Size	64000 B
Supply Voltage	5 VDC
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Color	Gray
Material	Plastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
