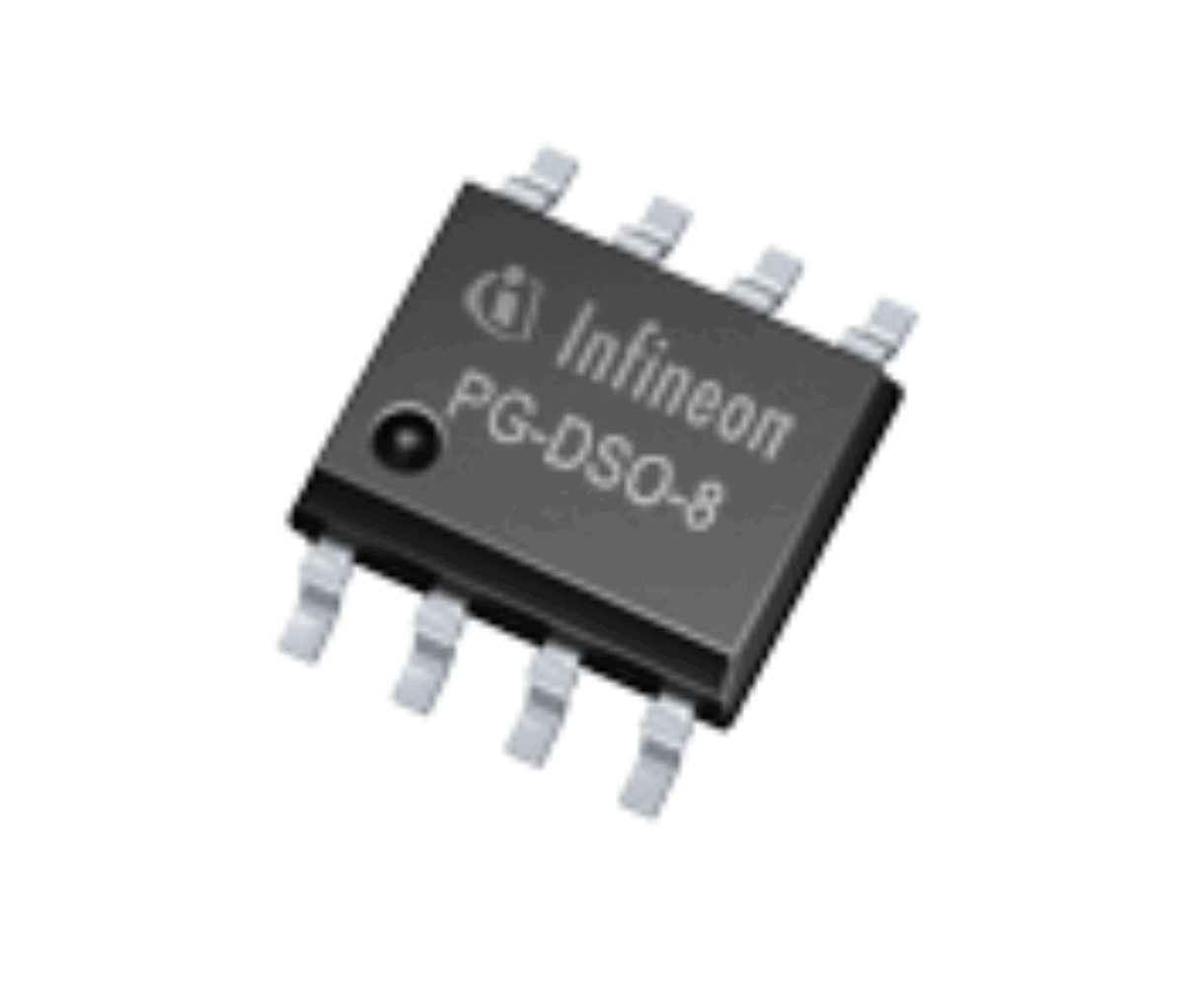

Image is for your reference only,please check specifications for details

BSP752R - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC6033093
Category:
Power Management IC
Package:
PG-DSO-8
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 1 Driver, 1.7A, MOS, PDSO8, GREEN, PLASTIC, SOP-8
Stock Locations:
Availability:
18,414 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.14

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BSP752R is a 1-output N-channel high-side vertical power FET Switch with charge pump, ground referenced CMOS compatible input and diagnostic feedback and monolithically integrated in smart SIPMOS® technology. It is providing embedded protective functions and CMOS compatible input.
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown with restart
Overvoltage protection
Fast demagnetization of inductive loads
Reverse battery protection with external resistor
Open drain diagnostic output for over-temperature and short-circuit
Loss of GND and loss of VBB protection
ESD protection
Very low standby current
ESD sensitive device, take proper precaution while handling the device.

Show

BSP752R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-DSO-8
Supply Voltage (DC)	52.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	2.20 V
Output Current	1.3 A
Supply Current	0.8 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1500 mW
Output Current (Max)	1.3 A
Output Current (Min)	1.3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
Supply Voltage	52 VDC
Input Voltage	2.2 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
