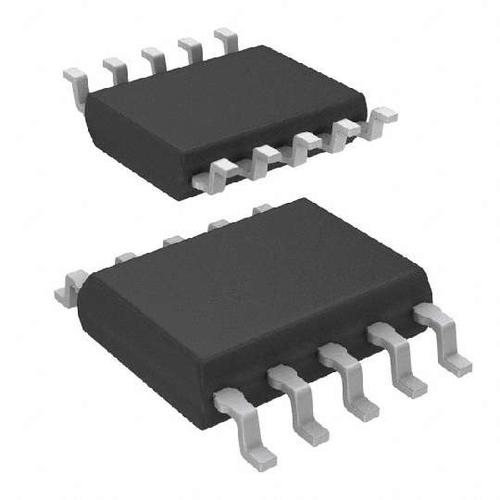

Image is for your reference only,please check specifications for details
- VIPER06LS - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC47536529
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:SSO-10
-
Datasheet:Datasheet 3D Model
-
Description:AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz Tube 10Pin SSO
-
Stock Locations:
-
Availability:1,819 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.61
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * 800 V avalanche rugged power section * PWM operation with frequency jittering for low EMI * Operating frequency * 30 kHz for VIPER06Xx * 60 kHz for VIPER06Lx * 115 kHz for VIPER06Hx * No need for an auxiliary winding in low-power applications * Standby power AC * Limiting current with adjustable set point * On-board soft-start * Safe auto-restart after a fault condition * Hysteretic thermal shutdown
VIPER06LS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | SSO-10 |
| Power Rating | 8 W |
| Breakdown Voltage | 800 V |
| Number of Positions | 10 Position |
| Switching Frequency | 60 kHz |
| Duty Cycle | 70 % |
| Input Voltage (AC Max) | 265 v |
| Input Voltage (AC Min) | 85 v |
| Maximum Duty Cycle | 80 % |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 23.5 V |
| Supply Voltage (Min) | 11.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
