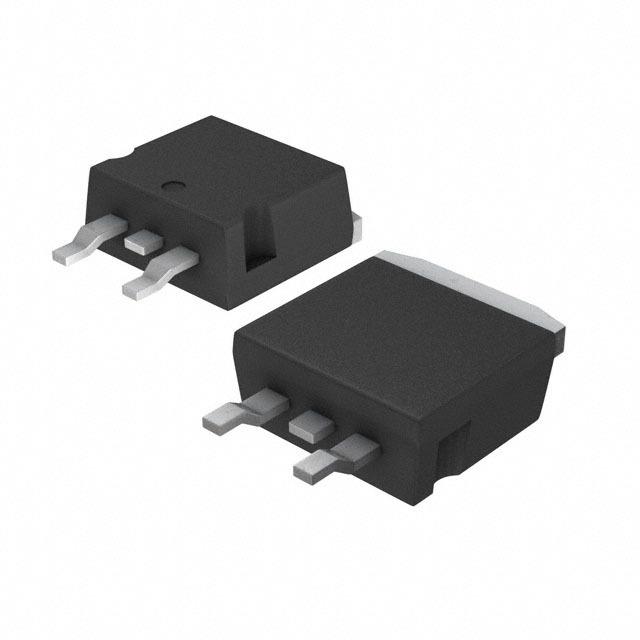

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

VNB14N04 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Outputs	1 Output
Output Current	10 A
Drain to Source Resistance (on) (Rds)	70.0 mΩ
Power Dissipation	50 W
Breakdown Voltage (Drain to Source)	42.0 V
Continuous Drain Current (Ids)	14.0 A
Output Current (Max)	10 A
	Show
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
