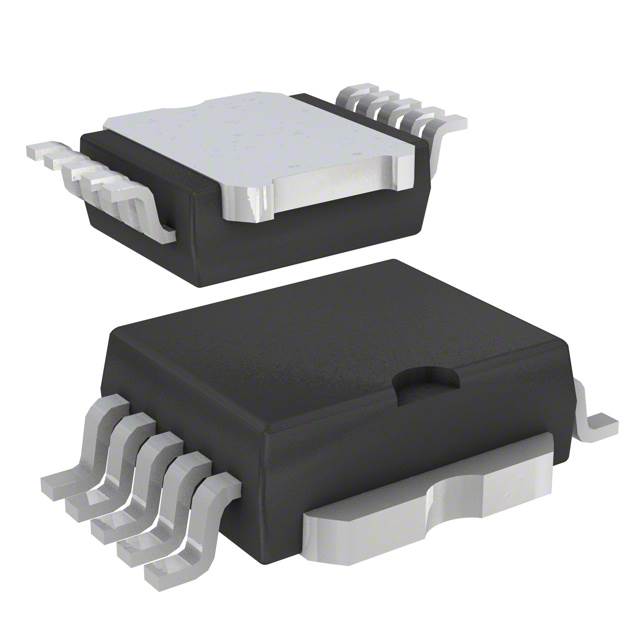

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The VND10BSP is a monolithic device made using SGS-THOMSON Vertical Intelligent Power
Technology, intended for driving resistive or inductive loads with one side grounded. This
device has two channels, and a common diagnostic. Built-in thermal shut-down protects
the chip from over temperature and short circuit. The status output provides an indication of open
load in on state, open load in off state, overtemperature conditions and stuck-on to VCC.
■ OUTPUT CURRENT (CONTINUOUS): 14A @ Tc= 85oC PER CHANNEL
■ 5V LOGIC LEVEL COMPATIBLE INPUT
■ THERMAL SHUT-DOWN
■ UNDER VOLTAGE PROTECTION
■ OPEN DRAIN DIAGNOSTIC OUTPUT
■ INDUCTIVE LOAD FAST DEMAGNETIZATION
■ VERY LOW STAND-BY POWER DISSIPATION

Show

VND10BSP Specifications
