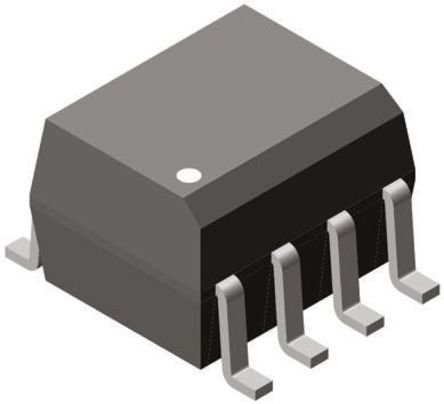

Image is for your reference only,please check specifications for details
- VO0630T - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC14266726
-
Category:Optocoupler, Optoisolator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Logic Output Optoisolator 10MBd Open Drain 4000Vrms 2Channel 1kV/μs CMTI 8-SOIC
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The VO0630T is a 2-channel 10Mbaud Optocoupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor output. The internal shield provides a guaranteed common mode transient immunity of 5kV/µs. The use of a 0.1µF bypass capacitor connected between pin 5 and 8 is recommended.
- 5V CMOS compatibility
- Pure tin leads
- 5mA Low input current capability
VO0630T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Rise/Fall Time | 23ns, 7ns |
| Output Voltage | 7.00 V |
| Output Current | 0.05 A |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Forward Voltage | 1.4 V |
| Input Current | 15 mA |
| Power Dissipation | 0.06 W |
| Rise Time | 0.023 µs |
| Isolation Voltage | 4 kV |
| Forward Current | 15 mA |
| Input Current (Min) | 15 mA |
| Reverse Breakdown Voltage | 5 V |
| Maximum Forward Voltage (Max) | 1.7 V |
| Forward Current (Max) | 15 mA |
| Fall Time | 0.007 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 60 mW |
| Show | |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
