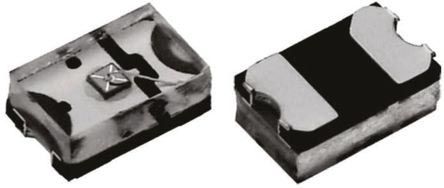

Image is for your reference only,please check specifications for details
- VSMB1940X01 - Vishay Semiconductor
-
Manufacturer:Vishay Semiconductor
-
ManyChip's Part#:MC20567175
-
Category:Light Source, Emitter
-
Package:0805
-
Datasheet:Datasheet 3D Model
-
Description:VISHAY VSMB1940X01 Infrared Emitter, High Speed, 60°, 0805, 100mA, 1.6V, 15ns, 15ns
-
Stock Locations:
-
Availability:10,713 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.75
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Infrared (IR) Emitter 940nm 1.35V 100mA 3mW/sr @ 100mA 120° 0805 (2012 Metric)
VSMB1940X01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Power Rating | 160 mW |
| Rise/Fall Time | 0.015 µs |
| Number of Positions | 2 Position |
| Forward Voltage | 1.35 V |
| Wavelength | 940 nm |
| Viewing Angle | 60° |
| Peak Wavelength | 940 nm |
| Power Dissipation | 160 W |
| Rise Time | 15 ns |
| Test Current | 100 mA |
| Forward Current | 100 mA |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 100 mA |
| Fall Time | 15 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 160 mW |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
