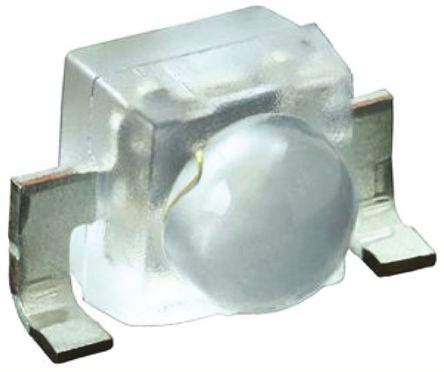

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- High speed infrared emitting diode, 940nm, GaAlAs, MQW suitable for use in IrDA compatible data transmission, miniature light barrier, photo interrupters, optical switch, remote control and IR touch panels applications.
- AEC-Q101 qualified
- High reliability
- High radiant power
- High radiant intensity
- Angle of half sensitivity = ±25°
- Low forward voltage
- Suitable for high pulse current operation
VSMB2943SLX01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD |
| Power Rating | 160 mW |
| Number of Positions | 2 Position |
| Forward Voltage | 1.35 V |
| Wavelength | 940 nm |
| Viewing Angle | 50° |
| Peak Wavelength | 940 nm |
| Power Dissipation | 160 W |
| Rise Time | 15 ns |
| Test Current | 100 mA |
| Forward Current | 100 mA |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 100 mA |
| Fall Time | 15 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 160 mW |
| Show | |
| Size-Height | 2.3 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
