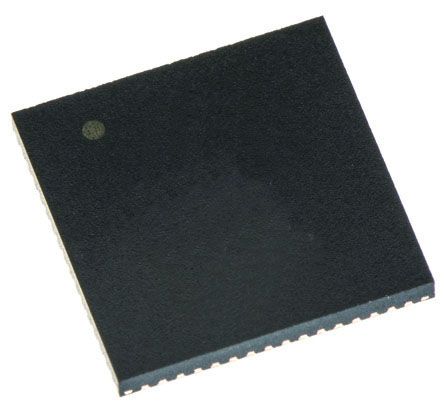

Image is for your reference only,please check specifications for details

WL1801MODGBMOCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5167463
Category:
RF Receiver
Package:
Module
Datasheet:
Datasheet 3D Model
Description:
SPECIALTY TELECOM CIRCUIT, PBGA100, 13.40 x 13.30, 2MM HEIGHT, 0.7MM PITCH, MOC-100
Stock Locations:
Availability:
3,962 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 23.91

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The WL1801MODGBMOCT is a 1-band Wi-Fi/Bluetooth Combo Module offers high throughput and extended range along with Wi-Fi and Bluetooth coexistence in a power-optimized design. The device is a 2.4GHz module, two antenna solution. It offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX and FreeRTOS, are supported through third parties. It is suitable for use with internet of things (IoT), smart gateway and metering, home electronics, video conferencing, home appliances and white goods, video camera and security applications.
Small form factor
Fully calibrated
Reduces design overhead
Quick hardware design with TI module
Dedicated audio processor support of SBC encoding+A2DP
Wi-Fi Direct concurrent operation (multichannel, multirole)
WLAN baseband processor and RF transceiver supports IEEE 802.11a, b, g and n
2.4GHz MRC Support for extended range
4-bit SDIO Host interface support

Show

WL1801MODGBMOCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	Module
Frequency	2.4 GHz
Output Power	18.5 dBm
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	2.9V ~ 4.8V
	Show
Size-Length	13.5 mm
Size-Width	13.4 mm
Size-Height	2 mm
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	5A992.c
