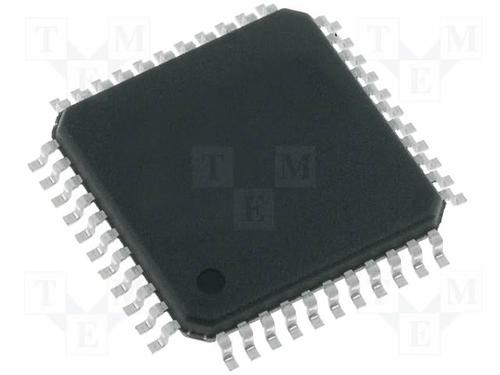

Image is for your reference only,please check specifications for details
- Z8F3221AN020SG - Zilog
-
Manufacturer:Zilog
-
ManyChip's Part#:MC48512038
-
Category:Microcontroller, MCU IC
-
Package:LQFP-44
-
Datasheet:Datasheet 3D Model
-
Description:MCU, 8Bit, XP F64xx Series, w/ 32KB Int Flash, 44Pin LQFP, 20MHz, 0°C~+70℃, Pb-free
-
Stock Locations:
-
Availability:276 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.17
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- eZ8 Encore!® XP® Microcontroller IC 8-Bit 20MHz 32KB (32K x 8) FLASH 44-QFP (10x10)
Z8F3221AN020SG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 44 Pin |
| Case/Package | LQFP-44 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Clock Speed | 20 MHz |
| RAM Memory Size | 2K x 8 |
| Power Dissipation | 750 mW |
| Number of I/O Pins | 31 IO |
| Access Time | 20.0 µs |
| Core Architecture | Z8 |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 750 mW |
| Supply Voltage | 3V ~ 3.6V |
| Show | |
| Size-Length | 10.1 mm |
| Size-Width | 10.1 mm |
| Size-Height | 1.45 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
