ZB4BH013 Schneider Electric - Pushbutton Switches

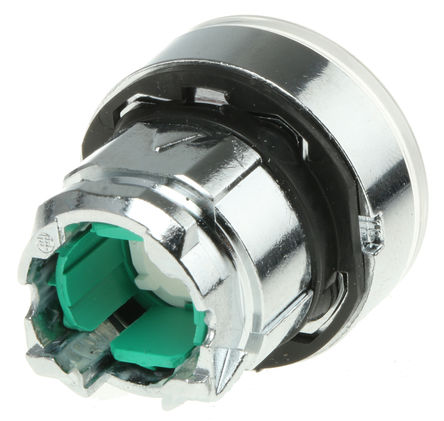

Image is for your reference only,please check specifications for details

ZB4BH013 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC16491044
Category:
Pushbutton Switches
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Кнопка: с дужкой; 2Позиция; 22 мм; белый; IP66; -25÷70℃; диаметр 22 мм
Stock Locations:
Availability:
13 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 19.06

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

ZB4BH013 – это белая круглая светящаяся кнопка с диаметром 22 мм, предназначенная для использования в комбинациях с переключателями серии XB4. У нее металлический корпус, покрытый хромом, а также конструкция типа “push-push”. Подходит для использования с интегрированными светодиодами.
Механическая прочность до 500000 циклов
Степень защиты IP66, IK05, NEMA 4X, 13
Диапазон рабочих температур от -25 до 70°C

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	-
	Show
Operating Temperature	-25℃ ~ 70℃
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
