ZEN056V130A24LS - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC6932800
Category:
Zener Diode, Zener
Package:
SMD-3
Datasheet:
Datasheet 3D Model
Description:

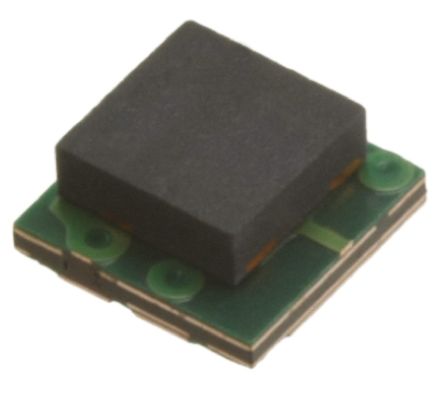

POLYZEN MICRO ASSEMBLY; POLYMER PROTECTED ZENER DIODE; 1.3A; 5.6V; 0.7W; SMD
Stock Locations:
Availability:
1,951 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.75

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

PolyZen™ devices are polymer enhanced zener diode micro-assemblies that help protect sensitive electronics from damage caused by inductive voltage spikes, voltage transients, incorrect power supplies and reverse bias.
**Benefits:
**
* Helps Shield Downstream Electronics from Overvoltage and Reverse Bias
* Trip Events Shut Out Overvoltage and Reverse Bias Source
* Analog Nature of Trip Events Minimize Upstream Inductive Spikes
* Helps Reduce Design Costs with Single Component Placement and Minimal Heat Sinking Requirements
**Features:**
* Overvoltage Transient Suppression
* Stable Vz vs. Fault Current
* Time Delayed, Overvoltage Trip
* Time Delayed, Reverse Bias Trip
* Power Handling on the Order of 100 Watts
* Integrated Device Construction
**Applications:**
* DC Power Port Protection for Systems Using Barrel Jacks for Power Input
* DC Power Port Protection in Portable Devices
* Internal Overvoltage and Transient Suppression
* DC Output Voltage Regulation

Show

ZEN056V130A24LS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SMD-3
Voltage Rating (DC)	5.60 V
Operating Voltage	5.6 V
Time to Trip	0.1 s
Capacitance	4.2 nF
Power Rating	700 mW
Breakdown Voltage	5.6 V
Number of Circuits	1 Circuit
Number of Positions	3 Position
Power Dissipation	700 mW
Resistance	0.12 Ω
Holding Current	1.3 A
Clamping Voltage	24 V
Test Current	3 A
Zener Voltage	5.6 V
Peak Pulse Power	0.7 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	85 ℃
Power Dissipation (Max)	0.7 W
Voltage Rating	24 V
	Show
Size-Length	4.15 mm
Size-Width	4.15 mm
Size-Height	2 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8541100050
ECCN Code	EAR99
