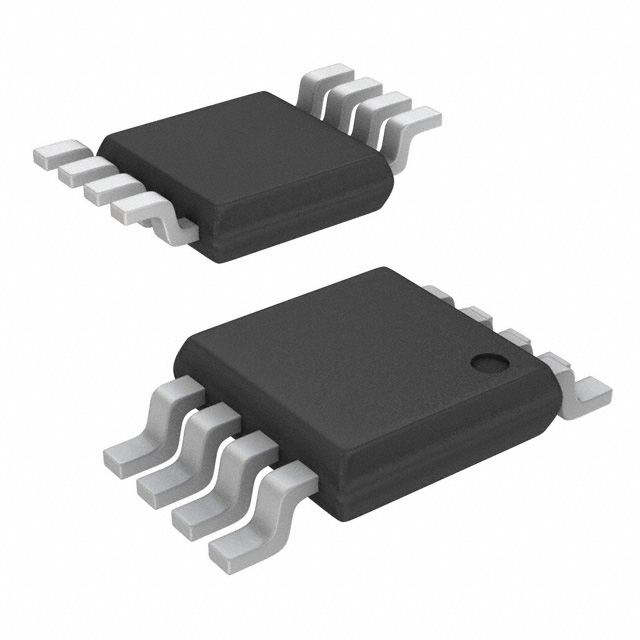

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The HMC213BMS8GE is an ultra miniature doublebalanced mixer in an 8 lead plastic surface-mount package (MsOP). This passive MMiC mixer is constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip. The device can be used as an upconverter, downconverter, biphase (de)modulator, or phase comparator. The consistent MMiC performance will improve system operation and assure regulatory compliance.
- **Applications**
- Base Stations
- PCMCIA Transceivers
- Wireless Local Loop
- ### Features and Benefits
- Ultra Small Package: MSOP8
- Conversion Loss: 8.5 dB
- LO / RF Isolation: 40 dB
HMC213BMS8E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Frequency | 1.5GHz ~ 4.5GHz |
| Supply Current | 9 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1424 mW |
| Show | |
| Product Lifecycle Status | Pre-Release |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
