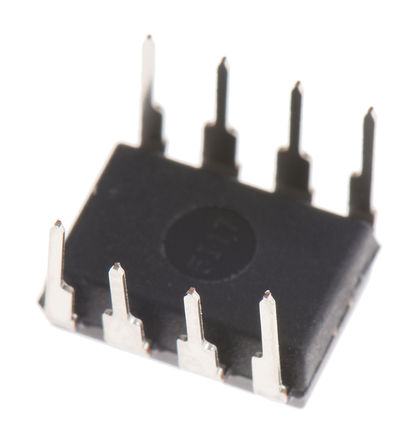

Image is for your reference only,please check specifications for details

RC4560IP - TI
Manufacturer:
TI
ManyChip's Part#:
MC7739200
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS RC4560IP Operational Amplifier, 2 Amplifier, 15MHz, 5.5V/µs, ± 2V to ± 18V, DIP, 8Pins
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.39

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RC4560IP is a high-gain wide-bandwidth dual Audio Operational Amplifier capable of driving 20V peak-to-peak into 400-ohm loads. The RC4560IP combines many of the features of the RC4558, but with wider bandwidth and higher slew rate, making this device ideal for active filters, data and telecommunications and many instrumentation applications.
Low noise voltage
Wide GBW
Low THD
Green product
Package thermal impedance is calculated in accordance with JESD 51-7.

Show

RC4560IP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	32.0 V
Output Current	≤50 mA
Supply Current	4.3 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	70 dB
Bandwidth	15 MHz
Slew Rate	5.50 V/μs
Gain Bandwidth Product	15 MHz
Input Offset Voltage	6 mV
Input Bias Current	40 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	15 MHz
Minimum CMRR Range	70 dB
Supply Voltage (Max)	32 V
Supply Voltage (Min)	4 V
	Show
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
