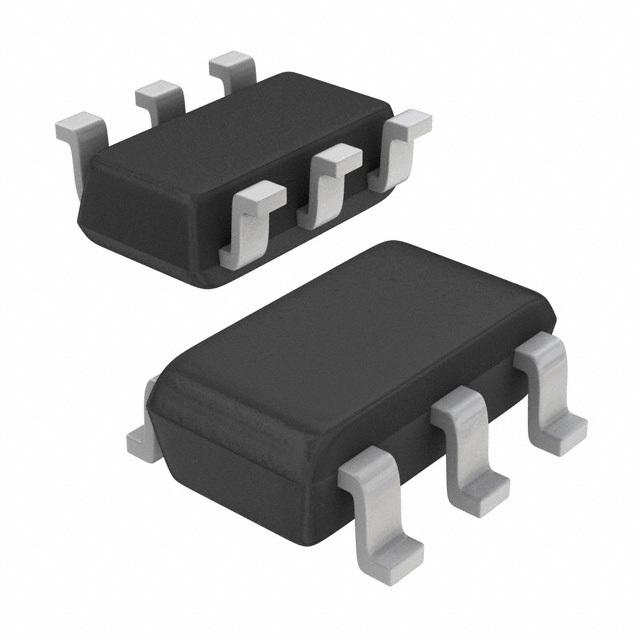

Image is for your reference only,please check specifications for details

ZHCS2000TA - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC4436238
Category:
Schottky Diode
Package:
SOT-23-6
Datasheet:
Datasheet 3D Model
Description:
ZHCS2000 Series 2A 40V 300uA High Current Schottky Barrier Diode - SOT-23-6
Stock Locations:
Availability:
269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.26

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ZHCS2000TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Voltage Rating (DC)	40.0 V
Current Rating	2.00 A
Capacitance	5.00 pF
Output Current	≤2.00 A
Forward Voltage	500mV @2A
Polarity	Standard
Power Dissipation	1.1 W
Thermal Resistance	113℃/W (RθJA)
Reverse recovery time	5.5 ns
Forward Current	2 A
Max Forward Surge Current (Ifsm)	20 A
Maximum Forward Voltage (Max)	500mV @2A
Forward Current (Max)	2000 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	125℃ (Max)
Power Dissipation (Max)	1100 mW
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.02 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
